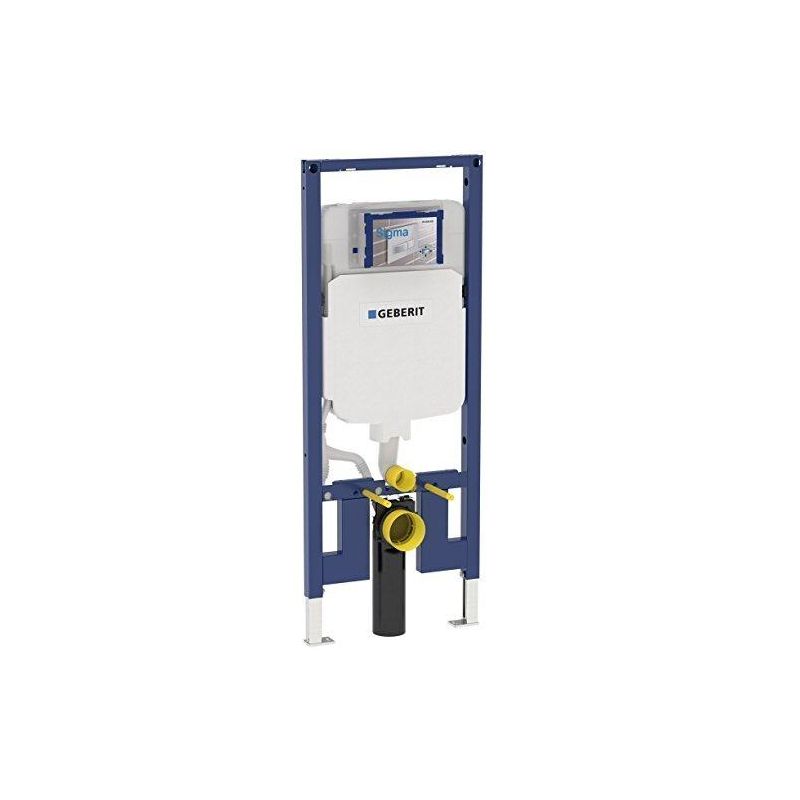

Geberit 111.798.00.1 Installation System for 1.6/0.8 GPF (6/3 LPF) Wall-HungToilets, 2 x 4 Installations

The Geberit Carrier system and Concealed Tank is to be used with an actuator flush panel or pneumatic push button (sold separately) for washdown wall hung toilets. System shall fit with in minimum 3 1/2" (90 mm) framing wall or plumbing chase, with wood construction or steel framing members placed 19 3/4" (500 mm)apart. Framing members should be capable of supporting a 880 pound (400 kg) load without damage to the wall. Water supply shall have flow diameter no smaller than 1/2" (13 mm)copper tube, and a minimum flow pressure of 2 PSI (0.01 MPa). The toilet bowl shall be a third party listed low consumption 1.6 GPF (6 LPF)or 1.6/0.8 GPF (6/3 LPF) dual flush 2 hole wall hung type. The carrier frame shall be adjustable for bowl rim heights from 15" to 19"(381 to 483 mm). Actuator flush panels (sold separately) shall be die cast zinc, molded plastic or fabricated stainless steel and plated to preserve material integrity.

Plastic and stainless steel construction
For installation of concealed flush tank for wall-hung washdown toilet
For dual flush
For room wall or pre-wall construction covered with panels
Supports up to 880 pounds
For installation in front of a solid or drywall
For toilet seated heights of 15" to 19"
Water supply connection at center back or at the top
Concealed tank and frame for tool-free mounting and repair work
Self locking feet for tool free alignment of the element

W 19 3/4" x H 55" x D 3 1/8"
