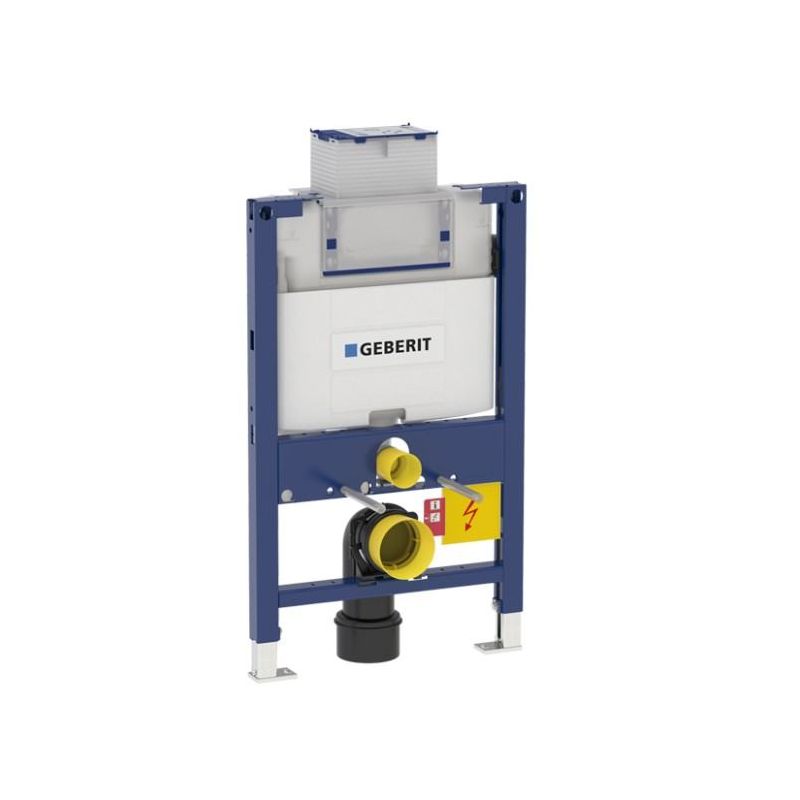

Geberit 111.012.00.1 Duofix Carrier Frame with Omega Concealed Wall Tank Pre-Wall 2 x 6 Construction, 1.6 / 0.8 GPF (6 / 3 LPF)

Geberit 111.012.00.1 Duofix Carrier for Wall-Hung Toilet in Pre-Wall 2 x 6 Construction, 1.6 / 0.8 GPF (6 / 3 LPF)

Designed to fit
Geberit Duofix in-wall systems for toilets provide a solution for nearly any situation. They are available for 2x4 or 2x6 stud-wall construction.

In-wall and pre-wall installations
Installation systems for wall-hung toilets are available in 47-inch (119 cm) height for the Geberit Sigma concealed tank and 32-inch (82 cm) height for the Geberit Omega concealed tank.

Proven Geberit flushing technology
Geberit Duofix in-wall systems are equipped with the Geberit concealed tank and flush valve: superior technology that has proven itself for decades.

Height 32 in (82 cm)
For installation of Omega concealed flush tanks for wall-hung washdown toilet
For installation in wood or steel stud walls that provide support equal to 5.5" depth
For dual flush
For room wall or pre-wall construction covered with panels (gypsum or wood)
For installation in front of a solid or drywall
For installation in room-height partition wall or pre-wall
For a floor construction of 0 - 4 in (0 - 10 cm)
For 2-hole, wall-hung, washdown toilet with fastening distance 7.1 in (18 cm) or 9.1 in (23 cm)
For toilet with dual flush, low-consumption flushing volume of 1.6 / 0.8 GPF (6 / 3 LPF)
For toilet seated heights of 15" to 19"
Supports up to 880 lbs (400 kg)
Water supply connection at left back or at the top
Self-locking feet for tool-free alignment of the frame
Feet galvanized, infinitely adjustable 0 - 4 in (0 - 10 cm)
Concealed cistern fully insulated against condensation
Fill valve flow rate at 7 psi (0.5 bar): 1.1 gpm (0.07 l/s)
Fill valve flow rate at 43 psi (3 bar): 3.0 gpm (0.19 l/s)
Flush volume: 1.6/0.8 GPF (6/3 LPF)
Fill valve operating pressure range: 1 - 145 psi (0.1 - 10 bar)
Fill valve max. fluid temp: 77°F (25°C)
Tank and frame, water supply, and drainage elbow
2 threaded rods M12 for ceramics fastening
Type 380 fill valve
Fastening material

Features
Water consumption – Dual-flush system allows 1.6/0.8 GPF (6/3 LPF), giving effective flush volume of 1.1 GPF (4 LPF)
Anti-siphon fill valve
Impact resistant high density polyethylene (HDPE) tank, insulated to prevent condensation
16-gauge, powder-coated, structural-steel tubing rated to 880 lbs. (400 kg) without damage to finished wall or carrier unit
Bowl rim height adjustments from 15” to 19” (381 to 483 mm)
32¼” (820 mm) frame height
For finished walls up to 31/2” (9 cm) thick
Small inspection opening for Omega flush actuator plates
