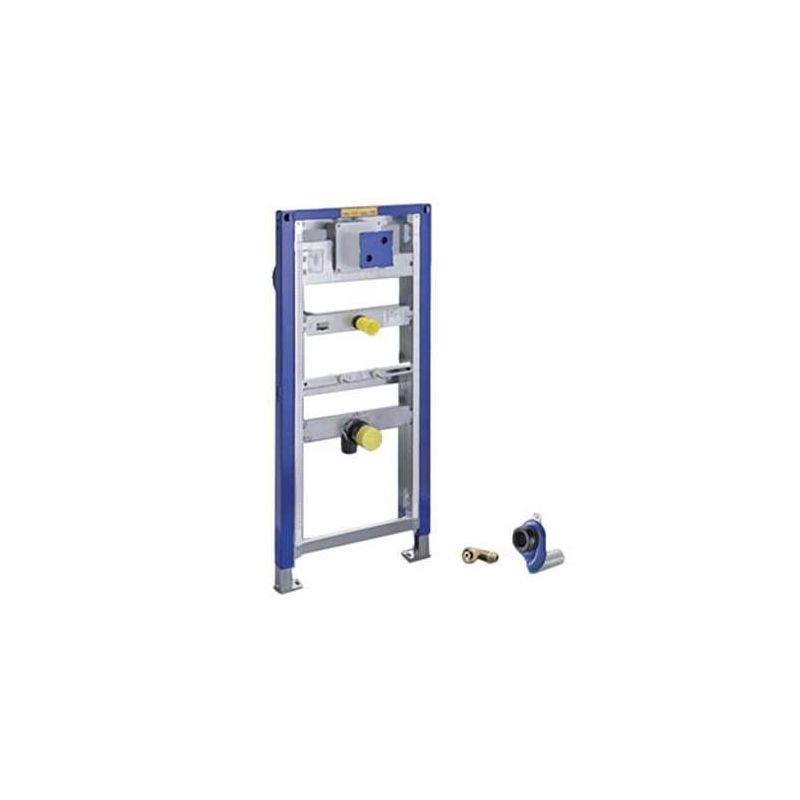

Geberit 111.625.00.1 Duofix In-wall System For Urinals For 2x4 Or 2x6 Construction

If you're installing a "his-and-hers" bathroom, be sure to include a Geberit Duofix urinal carrier for an added touch of convenience and cleanliness. Several flush plate styles are available, including a customizable Sigma50 plate and even a sensor-operated plate for hands-free operation. Compatible urinals are available from major ceramic manufacturers.

Geberit urinal flushing technology has proved itself over many years in the high-frequency operation typical of semi-public areas. The same quiet, reliable operation is now available for private homeowners.

For installation of concealed flush valves for wall-hung urinal
For installation in wood or steel stud walls that provide support in a minimum 3" (75 mm) depth
For single flush
For room wall or pre-wall construction covered with panels (gypsum or wood)
For installation in front of a solid or drywall
For installation in room-height pre-wall or partition wall
For a floor construction of 0 - 8 in (0 - 20 cm)
For 2-hole, stud mounted, wall-hung urinal with rear water inlet
With adjustable fixture, supply, drain, and valve mounting elevations and/or widths
Supports up to 110 lbs (50 kg)
Not suitable for hanger-type urinals with flushometer spud connections
Water supply connection at right
Self-locking feet for tool-free alignment of the element
Feet galvanized, infinitely adjustable 0 - 8 in (0 - 20 cm)
Flow rate at 15 psi (1 bar): 3.8 / 4.7 gpm without flow limiter (0.24 / 0.3 l/s)
Water test pressure: 230 psi (16 bar)
Operating pressure range: 14 - 116 psi (1 - 8 bar)
Frame, rough-in box, water supply, drainage elbow
2 threaded rods M8 for ceramics fastening
Vacuum breaker
Fastening material

Specifications:

Water consumption - 0.5 GPF (1.9 LPF)
16-gauge, powder-coated, structural-steel tubing rated to 110 lbs (50 kg) without damage to finished wall or carrier unit
44 1⁄16" (1119 mm) frame height depending on urinal
Installation hardware included

Complies with the latest editions of:

ASME: A112.6.2
ASSE 1037
CSA B125.3
