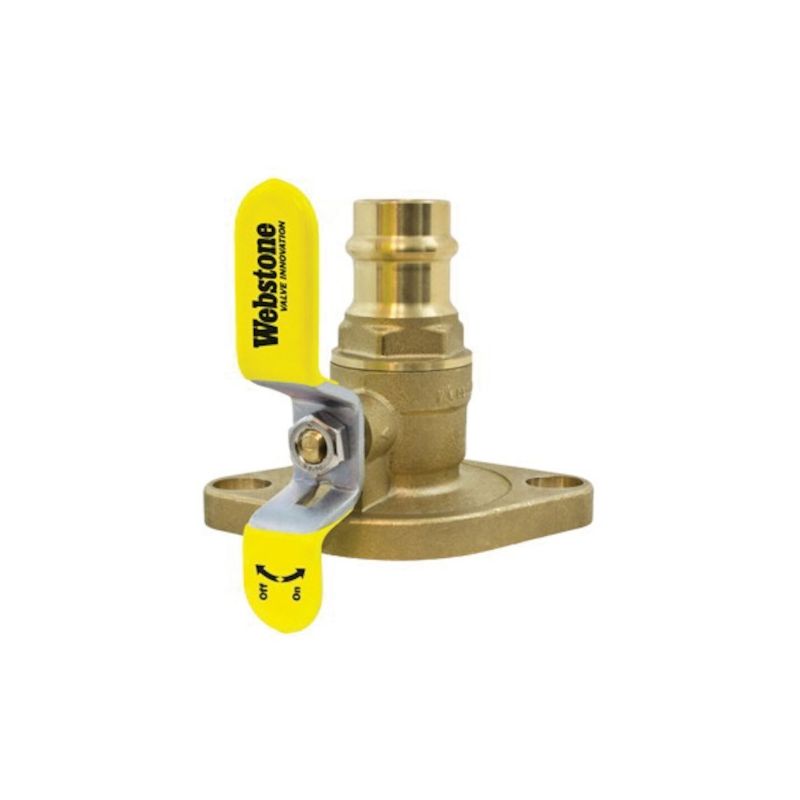

Webstone H-81403 3/4" Nominal Size 3-5/16" L Press Full Port Forged Brass Uni-Flange Isolator Flange with Rotating Flange

Designed for residential, commercial or industrial use with water only. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. HV models fit both standard and high velocity pumps. Webstone The Isolator Ball Valve, Series: 8140, 3/4" Nominal, Press X Rotating Flange, 250 psig CWP, 250 deg F, Full Port, Media: Water, Chrome Plated Brass Ball, 3-5/16" Inlet to Outlet Length, 2-1/4" Top to Inlet Center, Forged Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods

• Full port forged brass uni-flange ball valve with detachable rotating flange, adjustable packing gland, nuts and bolts
• The features and benefits you trust in our original Isolator line with two versatile enhancements
• First, 360 deg flange rotation that allows for rotation to any deg necessary for your installation
• Second, a multifunction drain that makes the isolator the only valve that drains from both sides of the pump
• Unique uni-body design is preserved
Solid forged brass outer flange
• Fully removable outer flange secured by snap ring
• Prevents electrolysis
• Eliminates galvanic corrosion
• 3-way ball purges before or after the pump
• Guaranteed for life
• Replaces 8 components
• Eliminate 7 leak paths
• Save 63 min of labor
• Compatible with popular press tools
• Snap ring provides greater control over installation
• Inner and outer flanges are designed to help prevent problems from over-torquing
• Twice the purging capabilities in a single
component
• PTFE packing gland
