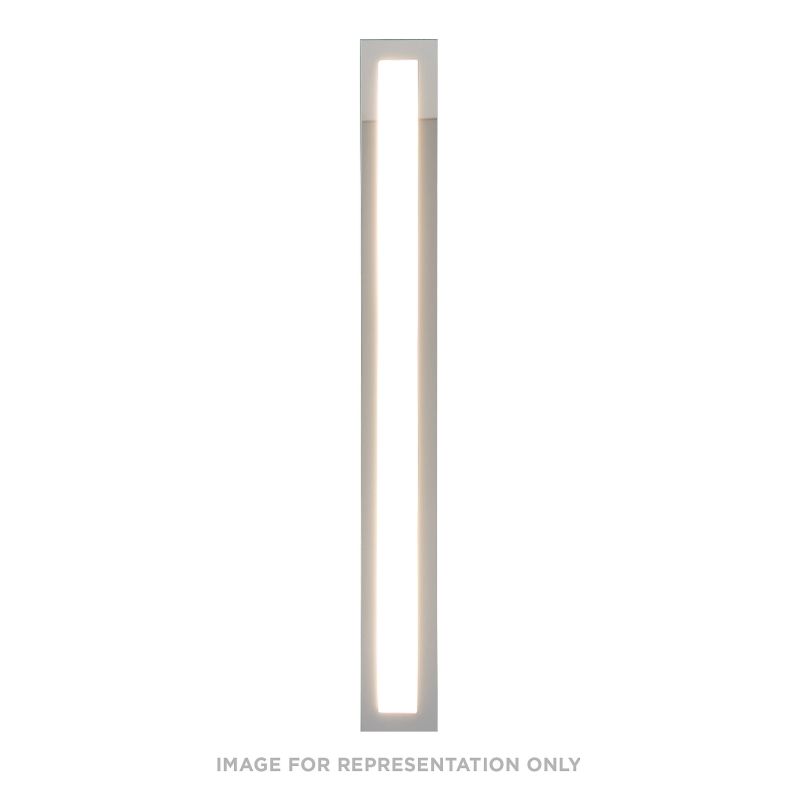

Robern ML3.540ILSFMRD3 InLine Vertical Lighting, 3-1/2" W X 39-3/8" H X 4-5/8" D, 3000K Temperature (Warm Light)

About Robern ML3.540ILSFMRD3 InLine Modular Light 40"
Modular Vertically Mounted Light for M Series Cabinets
Glass lens plane is flush with M Door
Available in Warm White (3000K), Natural White (4000K) and Variable color temperature (adjustable between 3000K and 4000K).
LEDs are CRI 90 and dimmable
Available as a single fixture - with dimmable driver
Includes installation hardware for attaching one side to a cabinet
Can be recessed or surface mounted (surface kit required)

Codes/Standards
ETL certified (damp locations) to:
UL 1598
CSA C22.2 NO.250.0

Electrical System
120 VAC 60HZ 23W (46W for "V" Model)
Class 2 - Dimming Transformer
Line voltage dimming with specified dimmer control
ETL Listed for Damp Locations
Two 1/2" conduit (Ø 7/8" actual) electrical knockout
Robern recommends the Maestro C•L Dimmers from LUTRON, Model # MACL-153M
"V" Model requires 2 dimmers and 3 wire + ground cable

Installation Option
Recessed Mount (Note: This fixture adds 3-1/2" (89 mm) per light to the overall rough-in width)
Rough Opening – 29-1/4" H x 2-3/4" W x 4" D (743 mm H x 70 mm W x 102 mm D)
Surface Mount - Reference Surface Mount Kit when ordering

MSMK30D4B – Beveled Mirror Kit
MSMK30D4P – Plain Mirror Kit
MSMK30D4## – Decorative Kit
Gangs to M Series 4" Cabinet (D6 and D8 only when recessed) - Reference M Ganging Kit when ordering - MGKIT
Note: An additional MGKIT is required per light when mounting cabinets on both sides of the light
