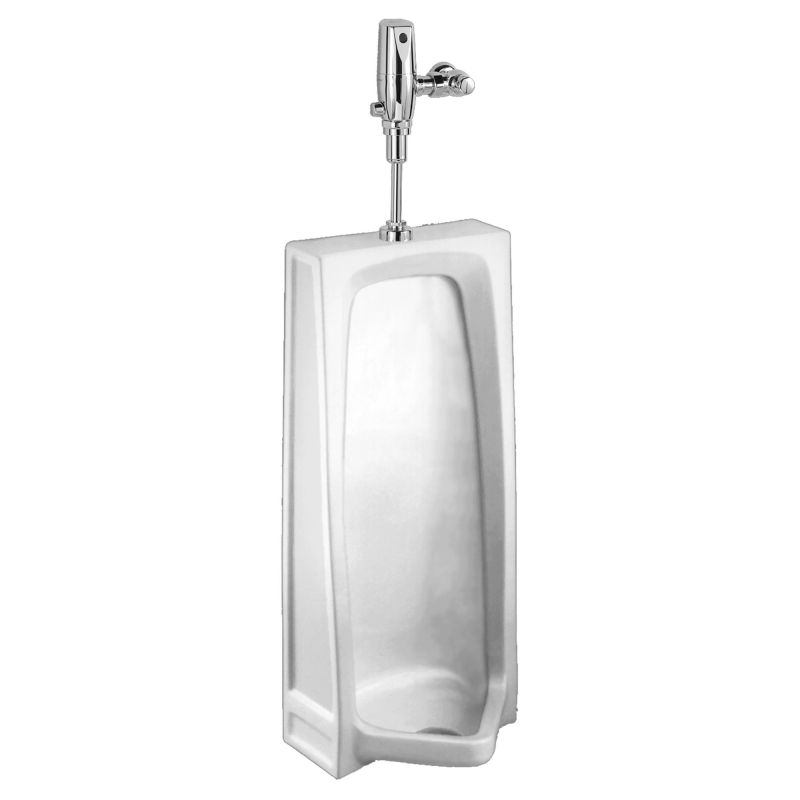

American Standard 6400001.020 Stallbrook Washout Urinal in White (Less Flush Valve)

The Stallbrook Urinal from American Standard features a tall, sloping front-stall design that combines functionality with expert craftsmanship and sleek, understated design. This water-saving urinal is offered with a universal consumption of consumption 0.50 to 1.0 gpf (1.9 to 3.8 Lpf) for maximum efficiency. Crafted from durable vitrous china, the Stallbrook Urinal is meant to last in high-use commercial applications with the reliability and quality you've come to expect from American Standard.

Features
Vitreous China
Integral flush spreader
Washout flush action
3/4" inlet spud
Meets ASME flush requirements at 0.50 to 1.0 gpf
WaterSense Certified when used with 0.5 gpf urinal flush valves (sold separately)

Stallbrook Washout Urinal
• Vitreous china
• Sloping front stall urinal
• Universal consumption 0.50 to 1.0 gpf (1.9 to 3.8 Lpf)
• Integral flush spreader
• Washout flush action
• 3/4" inlet spud
• Fixture (urinal) only
• Meets ASME flush requirements at 0.50 to 1.0 gpf

Nominal Dimensions: 381 x 457 x 972mm(15" x 18" x 38-1/4")
Recommended working pressure – between20 psi at valve when flushing and 80 psi static

Compliance Certifications
Meets or Exceeds the Following Specifications:
• AASME A112.19./CSA B45.1 for Vitreous China Fixture

Flush Valve: Required & Sold Seprately
1.0 gpf Flush Valve: Sensor-Operated: American Standard Selectronic # 6063.101.002 DC Power (Top Spud)
0.5 gpf Flush Valve: Sensor-Operated: American Standard Selectronic #6063.051.002 DC Power (Top Spud)
Strainer (suggest McGuire #1233 or equivalent)
