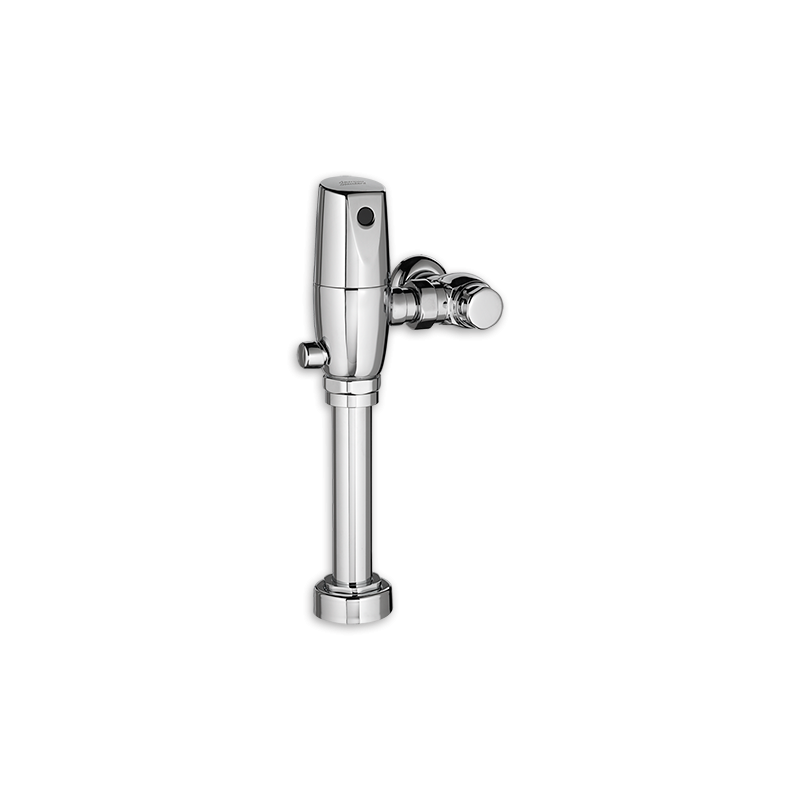

American Standard 6065121.002 Ultima Selectronic Exposed Toilet Flush Valve, Piston-Type, Battery-Powered, 1.1 gpf in Polished Chrome

The Exposed Selectronic Toilet Flush Valve is now capable of meeting ADA clearance requirements when installed under a grab-bar that is installed at 36” height from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.

Features
CR-P2 lithium battery installed. Battery Life: 4 years assuming 4,000 flushes per month
Touch-free operation helps keep the restroom clean and hygienic
Self-cleaning piston significantly reduces clogging and prevents valve run-on
Integral wiper spring cleans the refill orifice with every flush for extraordinary reliability
No Routine Maintenance: no diaphragms to replace; no filters to clean
Selectronic® Proximity System with programmable sensor allows for easy adjustment and customization
State-of-the-Art Electronics prevent ghost flushing
Fully Mechanical Manual Override Button can flush the valve without power
Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset
Adjustable Sanitary Flush cleans the fixture & maintains the trap seal.
Chemical Resistant EPDM Seals for extended life
Can be installed left or right handed

Specs
1.0 gpf (4.2 Lpf)
11-1/2” Rough in
Fits 1-1/2" top spud bowls

Sustainability
CALGreen Compliant

DIMENSIONS:
Height - 16”
Width - 2-7/8”
FLUSH RATE:
1.1 GPF
